EMS LED Series                                            Order Form

Why LED ?           Please see LED wiki for more LED knowledge

Model Appearance Input Voltage Power Input Luminous Flux Density Luminous Efficacy Straight down Illumination (1m) Color Temperature Color Rendering Mount Retail Price

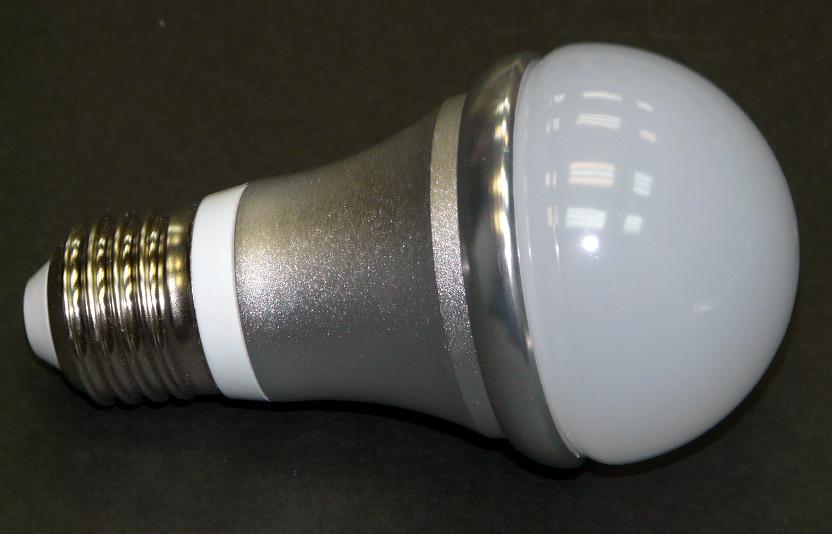

L1-CW 100-240V AC 4.5W 250 lm 55 lm/w 48 lux

5000∼6000K

(white light)

 ＞70 E27 US$10.69
L1-WW 210 lm 46 lm/w 44 lux

3000∼4000K

(yellow light)

 ＞70
L2-CW 100-240V AC 8W 460 lm 57 lm/w 115 lux

5000∼6000K

(white light)

 ＞70 E27 US$15.29
L2-WW 430 lm 53 lm/w 107 lux

3000∼4000K

(yellow light)

 ＞70

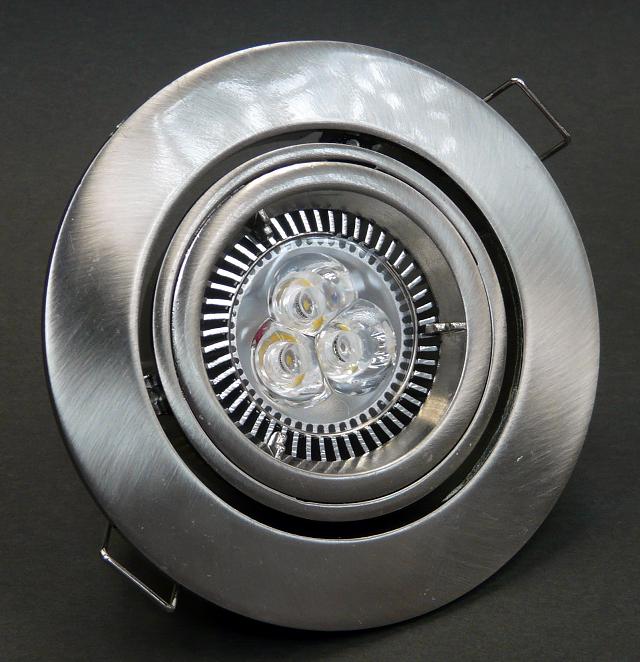

L3-CW 100-240V AC

(Transformer

is included)

 4W 250 lm 60 lm/w 470 lux

5000∼6000K

(white light)

 ＞65 GU5.3 US$9.49
L3-WW 210 lm 52 lm/w 450 lux

3000∼4000K

(yellow light)

 ＞65

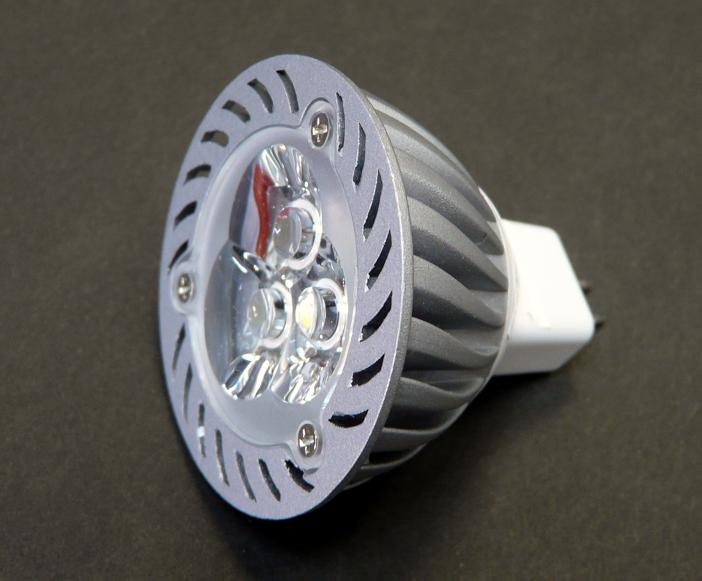

L4-CW 12V AC/DC  3W 170 lm 57 lm/w 530 lux

5000∼6000K

(white light)

 ＞70 GU5.3 US$6.59
L4-WW 150 lm 50 lm/w 440 lux

3000∼4000K

(yellow light)

 ＞70

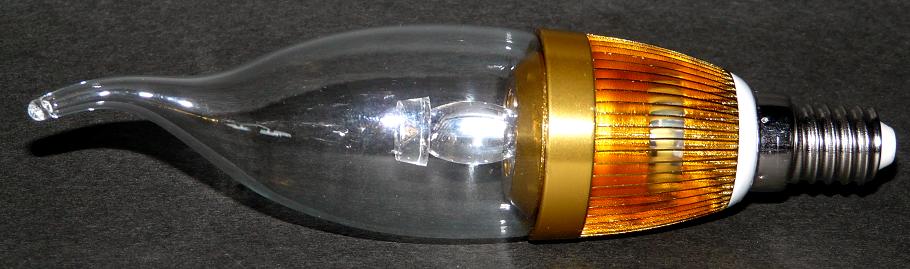

L5-WW 100-240V AC 3W 120 lm 40 lm/w 8 lux

3000K

(yellow light)

 ＞70 E14 US$9.89

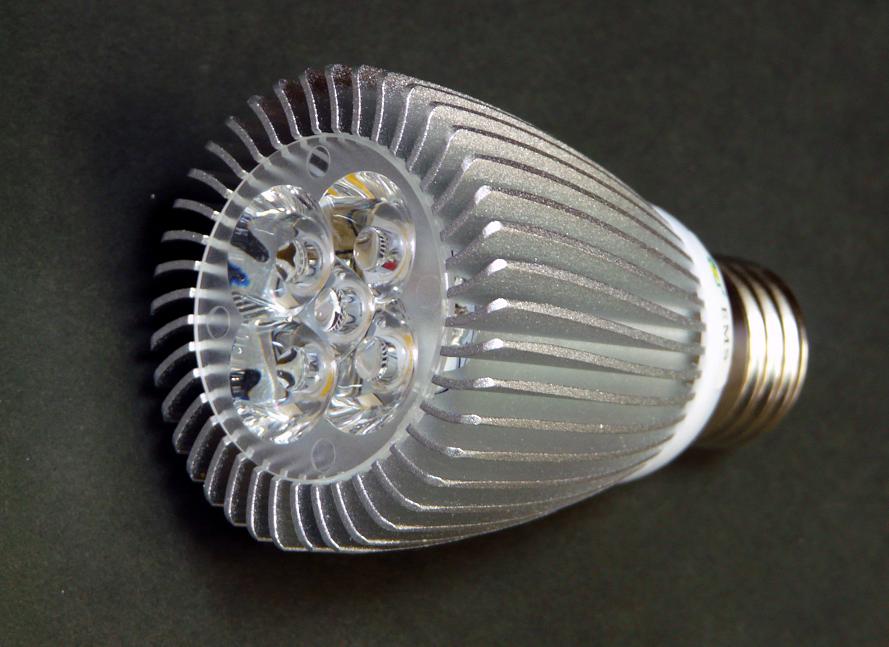

L6-CW 100-240V AC 6W 400 lm 67 lm/w 2100 lux

5000∼6000K

(white light)

 ＞70 E27 US$14.69
L6-WW 350 lm 58 lm/w 1700 lux

3000∼4000K

(yellow light)

 ＞70

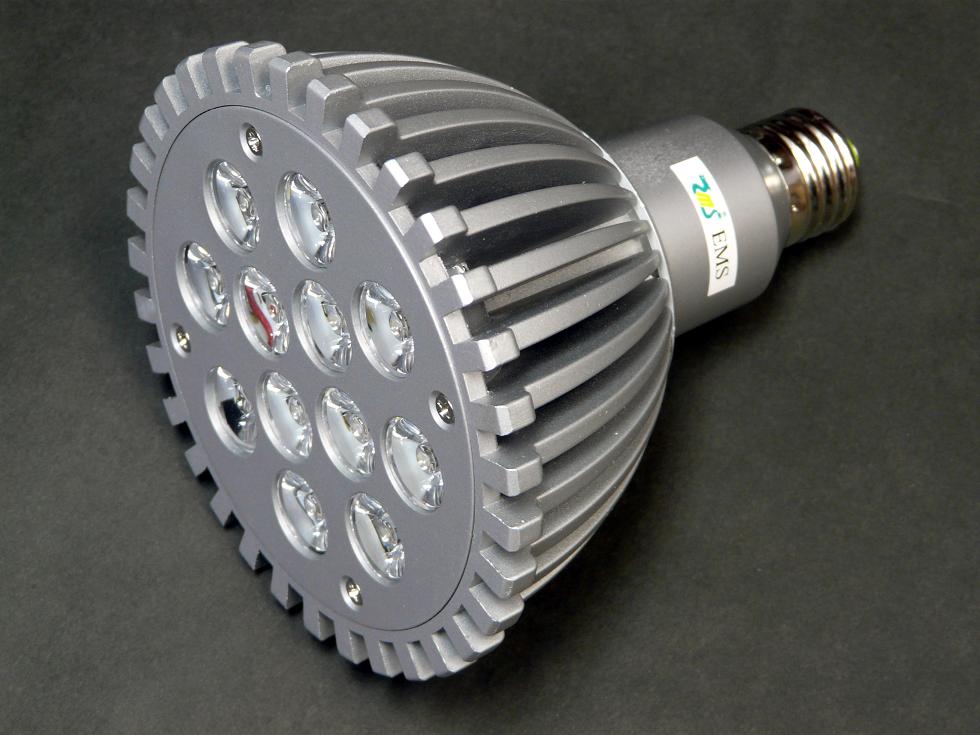

L7-CW 100-240V AC 15W 750 lm 50 lm/w 4000 lux

5000∼6000K

(white light)

 ＞70 E27 US$29.49
L7-WW 650 lm 43 lm/w 3600 lux

3000∼4000K

(yellow light)

 ＞70

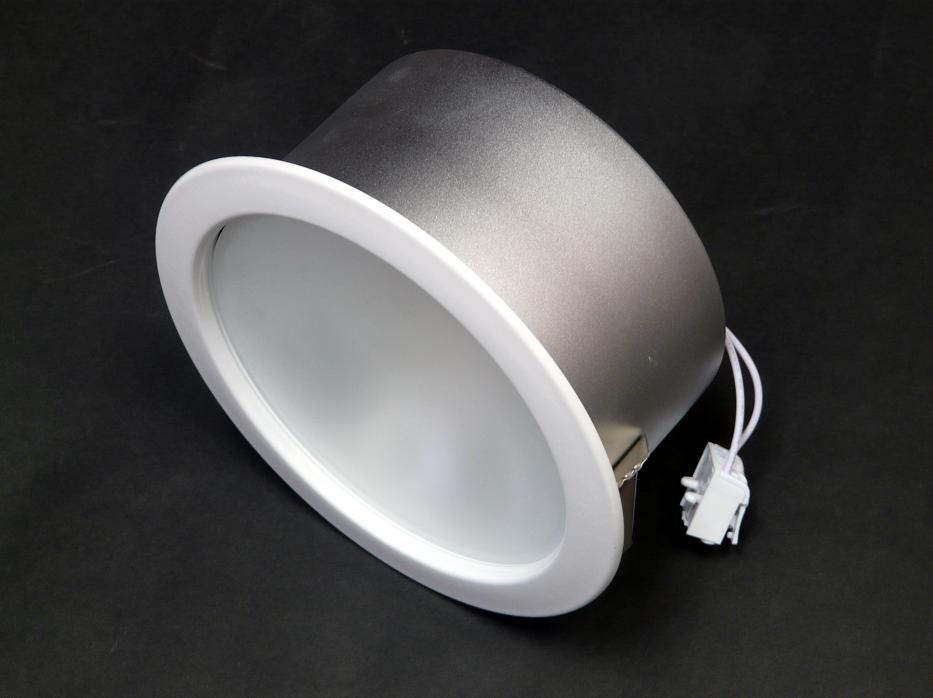

L8-CW 100-240V AC 12W 550 lm 46 lm/w 400 lux

5000∼6000K

(white light)

 ＞80 / US$22.09
L8-WW 520 lm 43 lm/w 380 lux

2800∼3200K

(yellow light)

 ＞80
L9-CW 100-240V AC 16W 800 lm 50 lm/w 626 lux

5000∼6000K

(white light)

 ＞80 / US$28.49
L9-WW 760 lm 47 lm/w  600 lux

2800∼3200K

(yellow light)

 ＞80

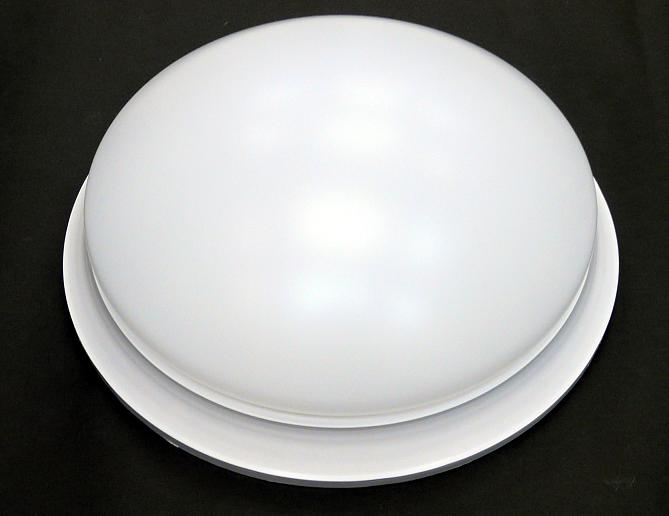

L10-CW 100-240V AC 15W 780 lm 52 lm/w 260 lux

5000∼6000K

(white light)

 ＞70 /　 US$30.89
L10-WW 700 lm 47 lm/w 230 lux

3000∼4000K

(yellow light)

 ＞70

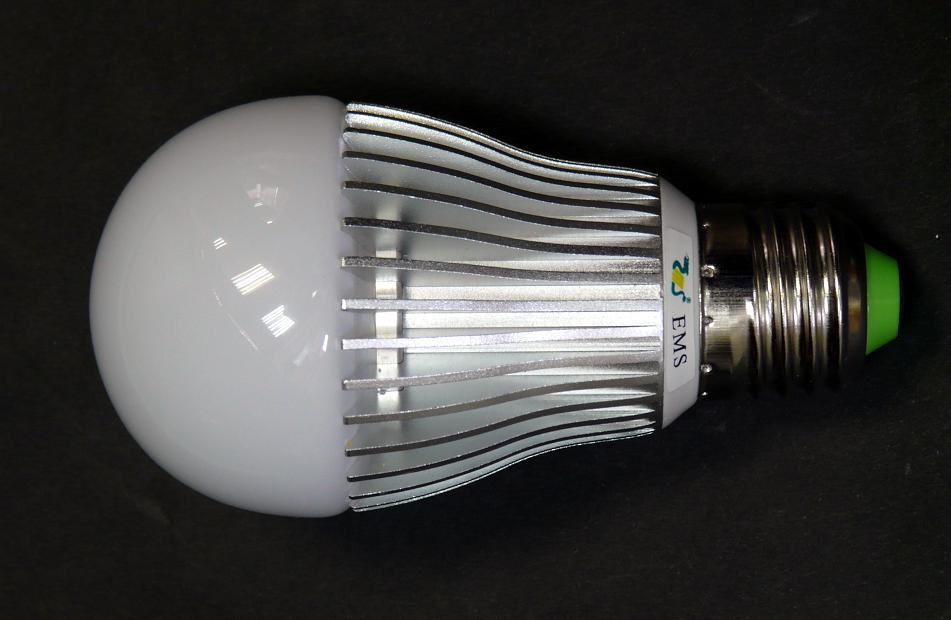

L11-CW 100-240V AC 4W 240 lm 60 lm/w 40 lux

5000∼6000K

(white light)

 ＞70 E27 US$10.29
L11-WW 210 lm 53 lm/w 35 lux

3000∼4000K

(yellow light)

 ＞75
L12-CW 100-240V AC 7W 400 lm 57 lm/w 80 lux

5000∼6000K

(white light)

 ＞70 E27 US$13.49
L12-WW 350 lm 50 lm/w 76 lux

3000∼4000K

(yellow light)

 ＞75

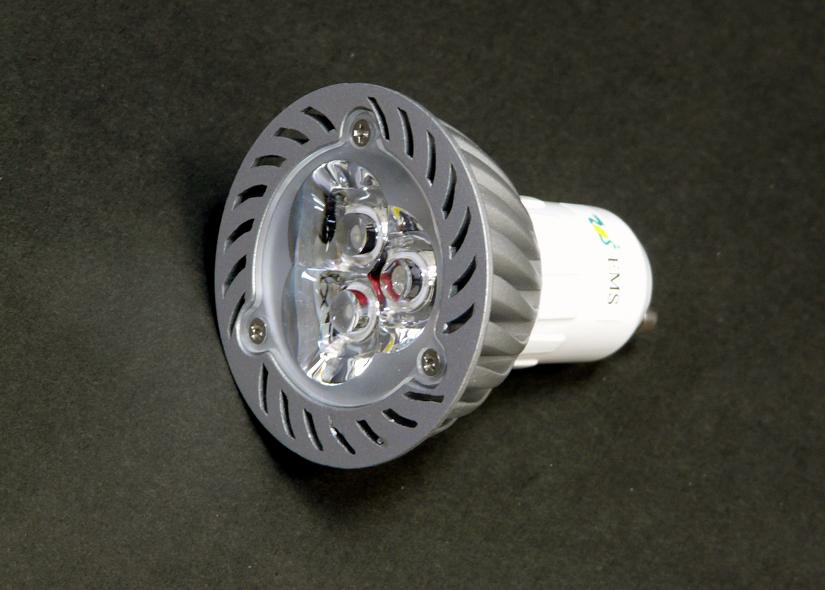

L13-CW 100-240V AC 4W 170 lm 43 lm/w 530 lux

5000∼6000K

(white light)

 ＞70 GU10 US$8.29
L13-WW 150 lm 38 lm/w 440 lux

3000∼4000K

(yellow light)

 ＞70

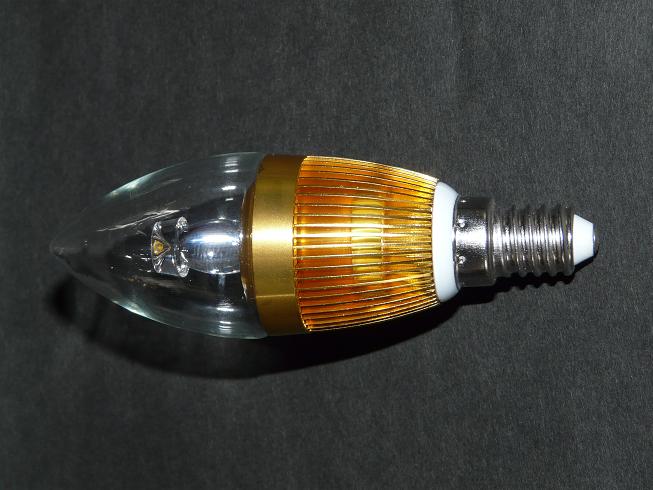

L14-WW 100-240V AC 3W 120 lm 40 lm/w 8 lux

3000K

(yellow light)

 ＞70 E14 US$9.89

　
