Model Number : L4-CW / L4-WW                                      Order Form

	Cool White	Warm White					Cool White	Warm White
Model Number	L4-CW	L4-WW		Material			lamp embryo : PMMA
Description	MR16-GU5.3-3W-CW	MR16-GU5.3-3W-WW					Body : Aluminum Alloy
Type	Projector Lamp (MR16)			Lifetime (hour)			around 30,000 ~ 35,000
Input Voltage	12V AC/DC			Dimension (mm)	Outer Diameter		φ50 mm
Power Consumption	3W				Long / Height		49 mm
Light Source Used	1W×3			Weight (g)			44 g
Luminous Flux Density	170 lm	150 lm		Protection Rating			IP20
Luminous Efficacy	57 lm/w	50 lm/w		Mount			GU5.3
Straight down illuminance (1m)	530 lux	440 lux		Dimension diagram
LED Lighting Power	3W
Beam Angle	40°
Color Temperature	5000～6000K	3000～4000K

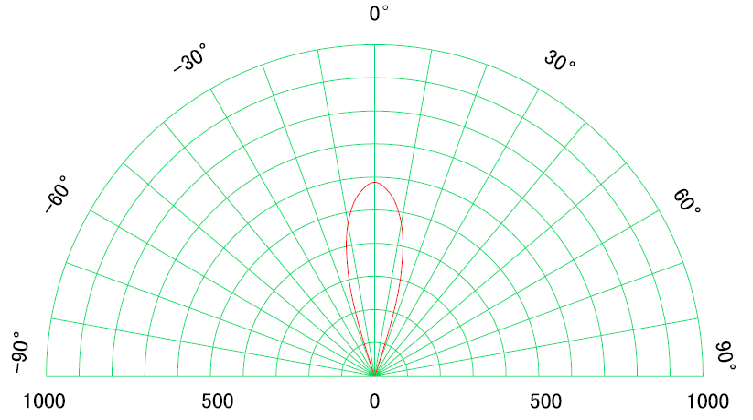

Color Rendering Index (Ra)	＞70			Luminous Intensity Distribution Curve
PFC	>0.5
Operating Temperature	-5～50℃

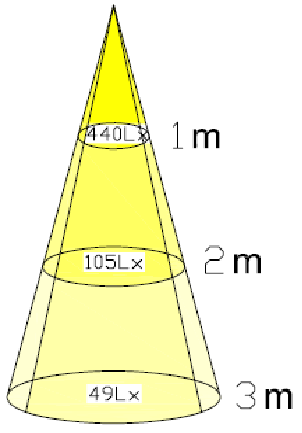

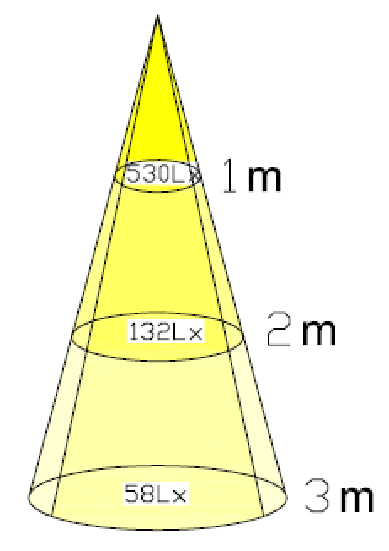

Operating Humidity	10～95％RH			Illuminance Distribution Diagram
Storage Temperature	-30～80℃
Storage Humidity	0～95％RH

Please see Warranty and Customer Notice. For any inquiry, please contact us : sales@hkems.com                            Back to index
